The Analog Communication Node is a device that enables all connected sensors (originally wired) for wireless LoRaWAN communication. The Analog Node is compatible with most analog interfaces used for geotechnical sensors.
Analog communication Node
The Analog Communication Node is a device that enables all connected sensors (originally wired) for wireless LoRaWAN communication. The Analog Node is compatible with most analog interfaces used for geotechnical sensors.
Analog Communication Node

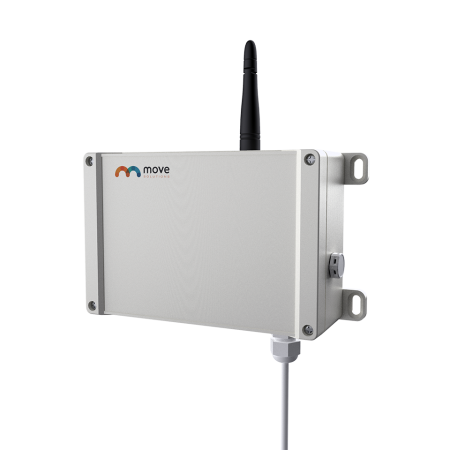

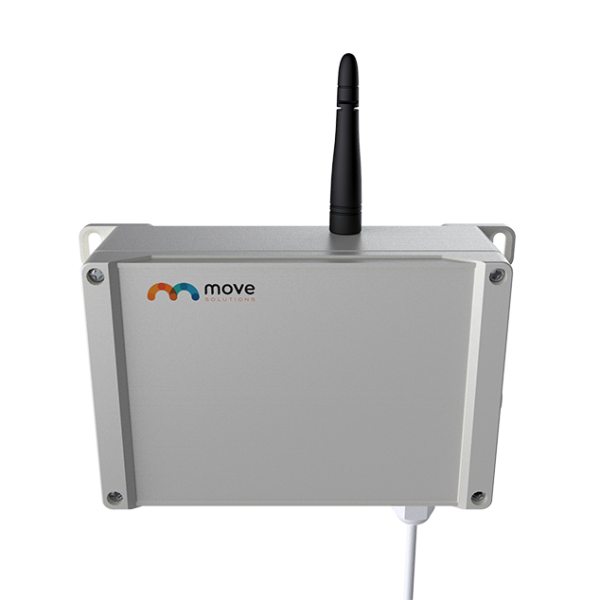

The Analog Communication Node is a wireless device that enables all connected (originally wired) sensors for wireless communication via LoRaWAN. The Analog Node supports up to 4 channels and is compatible with most analog interfaces used for geotechnical sensors.
The Analog Communication Node transmits accurate readings from all connected sensors via the LoRaWAN wireless communication protocol to the Gateway. You can freely configure the Analog Node and all connected sensors remotely using the Move Cloud Platform. With this Platform, you can view and interact with your data online. Ideal for implementing any monitoring system and meeting all project requirements.
Once the geotechnical sensors are connected to the Analog Node and the Gateways are properly installed on-site, they are ready to receive, store, and send data. You can freely configure the Analog Node and all connected sensors remotely using the Move Cloud Platform. Perfect for implementing any monitoring system and meeting all project requirements.
Key parameters:
- A wireless device with a built-in long-life battery
- Enables LoRaWAN wireless communication for any wired sensor
- Supports 4 sensor channels
- The sampling frequency can be adjusted remotely
- Supports current loop reading (4-20mA) (2, 3, 4 wires)
- Supports full bridge reading (mV / V)
- Supports PT-100 (3, 4 wires)
- ADC: 24-bit Delta-Sigma with self-calibration
- Extremely easy installation with versatile mounting options
- Waterproof grade IP67
Main Applications of the Analog Communication Node
|
|
|
|
Structural MonitoringUsing crack meters allows you to keep a dangerous crack pattern under control. You can also monitor the stress-strain state of structural elements using strain gauges and correlating the data with temperature. |
Geotechnical MonitoringBy inserting load and pressure cells into the soil, it is possible to control both the pressures exerted by the soil and the distribution of loads on the foundations and their deformations. |
Easy Installation of the Move Wireless Monitoring System
The installation of an entire wireless sensor system on-site is quick and easy: just mount each device with at least two screws on the structure you want to monitor and power the LoRaWAN gateway. You can configure the entire system remotely, before, during, or after installation, using your laptop or tablet. After mounting and configuring, the Move wireless monitoring system will start measuring and you can begin remote monitoring.
Operation of the Move Wireless Monitoring System
The wireless sensor system automatically communicates measurement data via LoRaWAN with the on-site gateway, which in turn sends the received data via 4G or LTE to online servers. The Move Cloud Platform is the cloud-based web tool that allows you to access, view, and export your measurement data and configure the settings of the entire sensor system. You can access the Move Cloud Platform 24/7 from anywhere or any device in the world. One of the main advantages of the Move Cloud Platform is that it offers remote access to measurement data and allows the remote configuration of all installed sensors. This saves time and effort. Additionally, you can analyze the measurement data using processing algorithms included in the service. Perform calculations, correlations, and complex analyses automatically and effortlessly. With just a click of a button, you can export measurement data in CSV format. You can also easily set up alerts to multiple recipients who will receive threshold crossing notifications via email.
- Easily install the entire system on the structure without the need for wiring.
- Quickly and remotely configure all wireless sensors.
- View measurement data in real-time wherever you are, on any device, 24/7.
- Process the collected data using the implemented algorithms.
- Constantly monitor the operational status and signal quality of the system remotely.
- Customize alarm notifications and receive overload notifications via email.
- Optionally, you can integrate the data into your platform via MQTT bridge, FTP, or API calls.
