The 360º prism type Leica GRZ122 is a high-precision accessory designed for robotic total stations and automatic tracking systems.

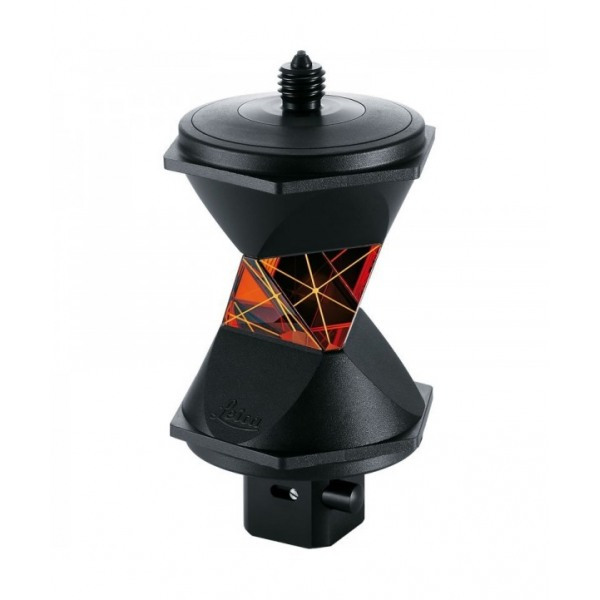

360º Prism Type Leica GRZ122
The 360º prism type Leica GRZ122 is a high-precision accessory designed for robotic total stations and automatic tracking systems.
€595.00
Tax excluded
360º Prism Type Leica GRZ122
Its compact and robust structure allows continuous capture from any direction, ensuring fast, precise and stable measurements even under demanding field conditions.
Main Features
- 360º design composed of six symmetrically arranged prisms for complete coverage in all directions.
- Prism constant: +23.1 mm (identical to the original Leica GRZ122 model).
- Fully compatible with Leica, Trimble, Topcon, Sokkia and other total stations with adjustable constants.
- Reinforced housing made of high-strength technical polymer with excellent resistance to impacts and adverse weather conditions.
- Top 5/8” thread for mounting GNSS antennas, brackets or controller adapters.
- Bottom mount type WILD, compatible with Leica mini poles or generic bases.
- Working range: up to 3500 m (depending on the instrument and atmospheric conditions).
Applications
Ideal for topographic surveys, staking, monitoring and construction control with robotic total stations. Its omnidirectional prism design allows the instrument to track the target without manual reorientation, optimizing both time and accuracy in fieldwork.
Advantages
- No manual orientation required thanks to its 360º geometry.
- High precision and repeatability for long-range measurements.
- Lightweight and durable design built for intensive professional use.
- Universal compatibility with Leica systems and other brands using equivalent adapters.
- Perfect for dynamic surveys and continuous robotic tracking applications.
Price: available upon request.
SH-GRZ122
